Product Description

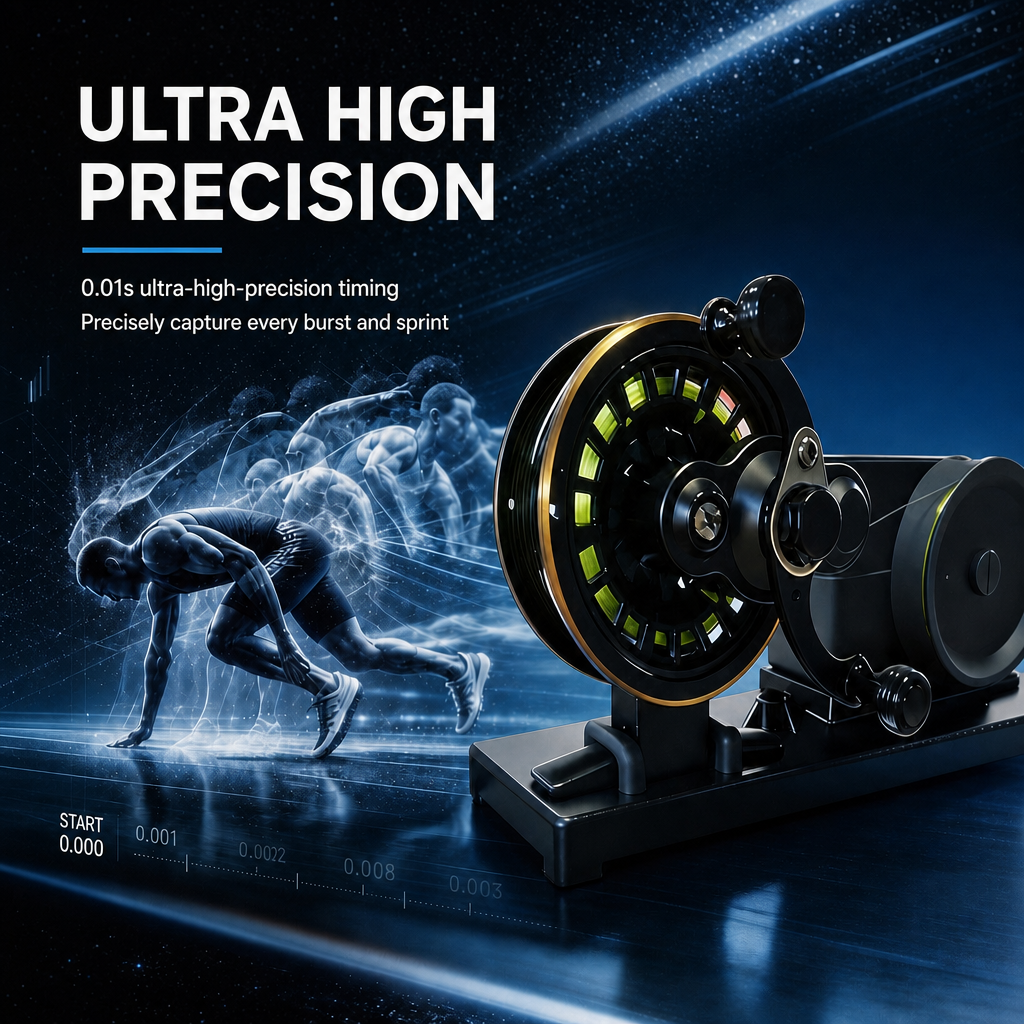

LX01 Intelligent Pull Wire Speed Tester is a professional sports speed measuring device, widely used for running, cycling, physical test and sports science research. Equipped with high-precision photoelectric encoder and exclusive vertical anti-drop roller structure, it effectively solves zero drift caused by gravity and ensures stable and accurate test data.
Core Functions & Advantages

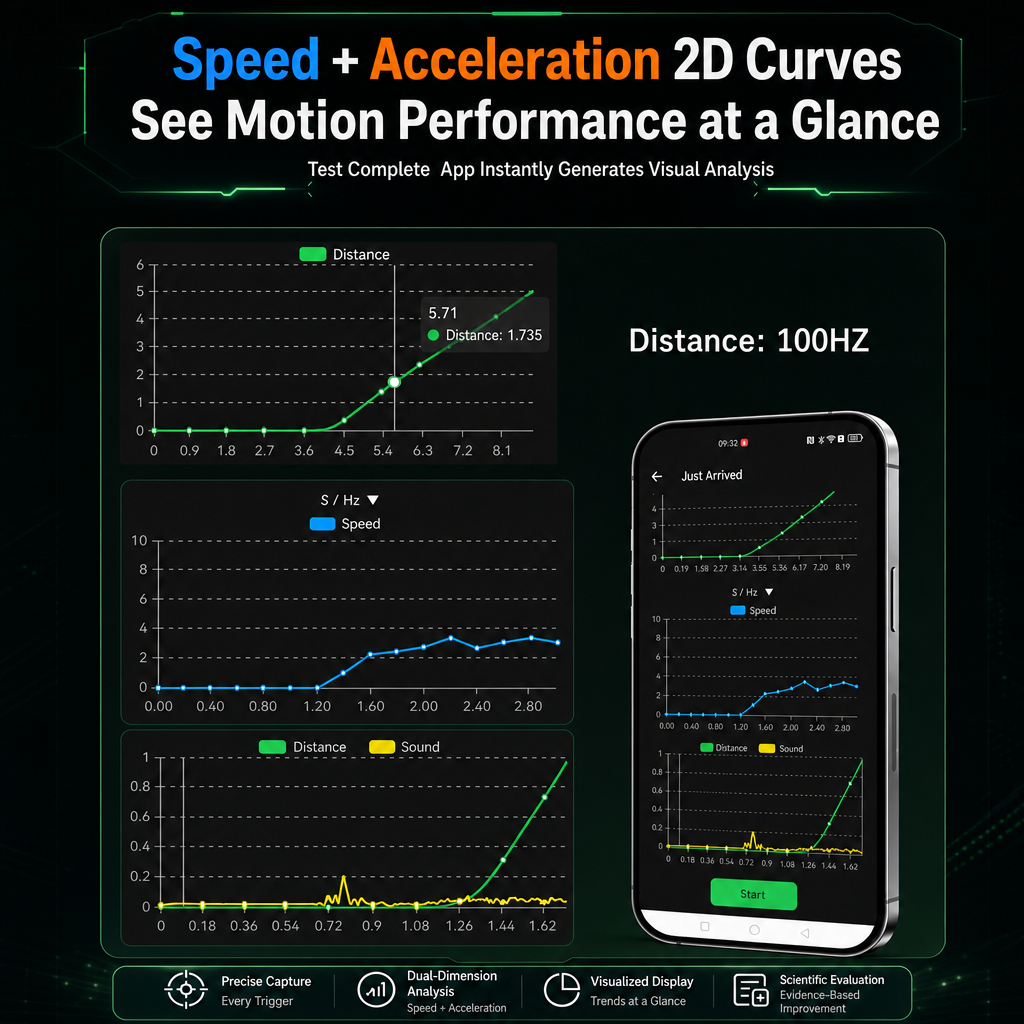

This tester captures linear displacement in real time and converts data into distance, time, instantaneous speed and acceleration. It can draw full speed curve and realize unlimited segment analysis, helping coaches and athletes analyze acceleration, peak speed and deceleration details. The 300m durable pull wire meets various long-distance test demands.
Paired with free MILLI DASH APP (compatible with iOS & Android), you can view visual data curves, manage member records, and export training reports with one click. The device supports three installation methods: handheld, placed on ground and fixed with bracket, easy to set up for indoor and outdoor scenes.
Specifications
Model: LX01
Dimension: 16*7*7 CM
Weight: 400G
Timing Precision: 0.001S
Total Error: ≤0.3%
Sampling Frequency: 100Hz (Distance) / 10Hz (Speed)
Max Wire Length: 300m
Max Test Speed: 100km/h
Connection: Bluetooth (≤20m)
Battery: 300mAh, 2hrs full charge, 8hrs continuous use
Standby Time: 2 months
Charging Port: Type-C
Material: Engineering Plastic
Waterproof: No
Certification: CE
Multi-language: Supported

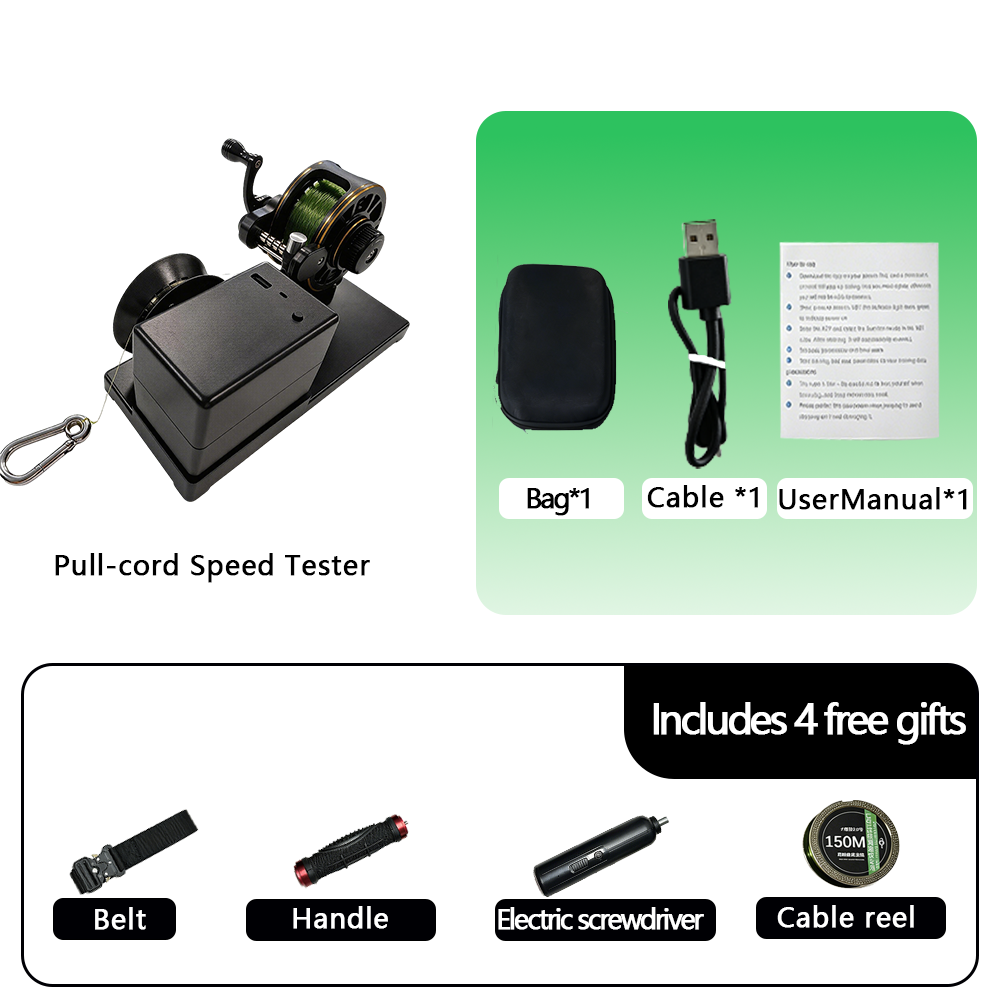

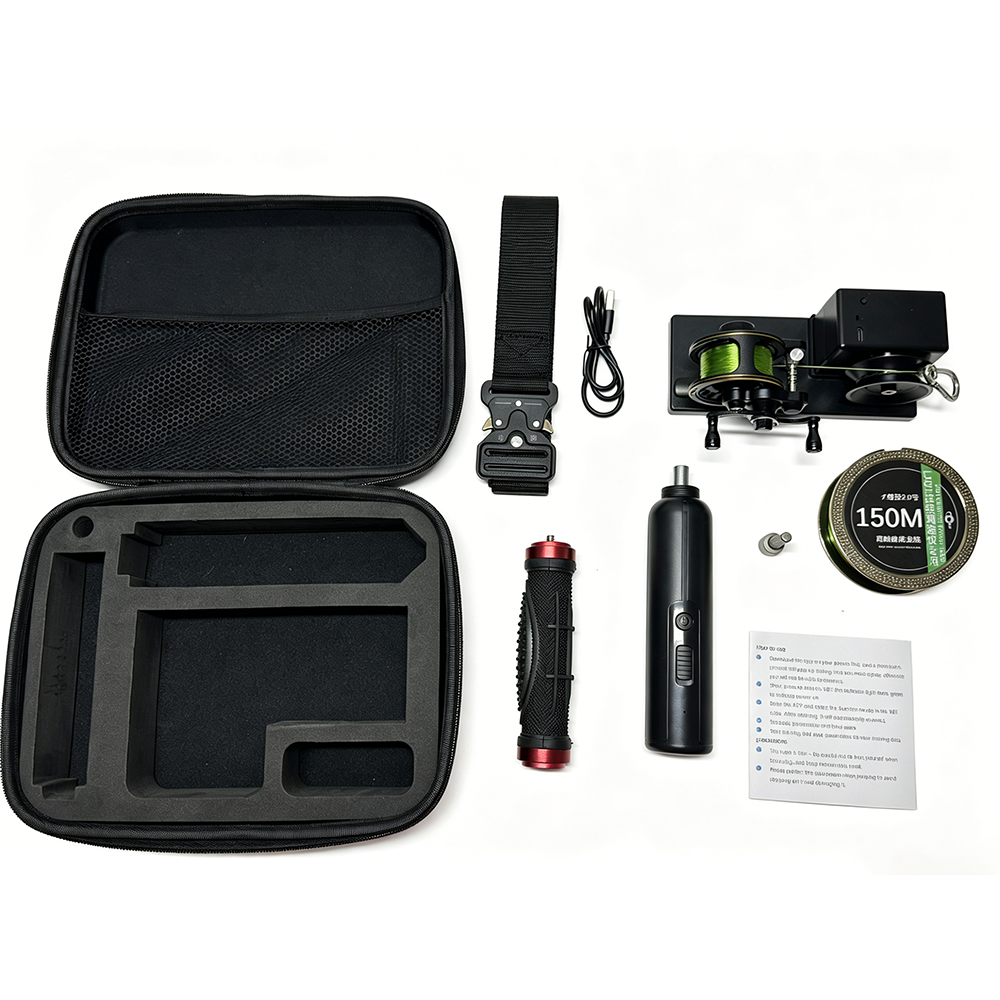

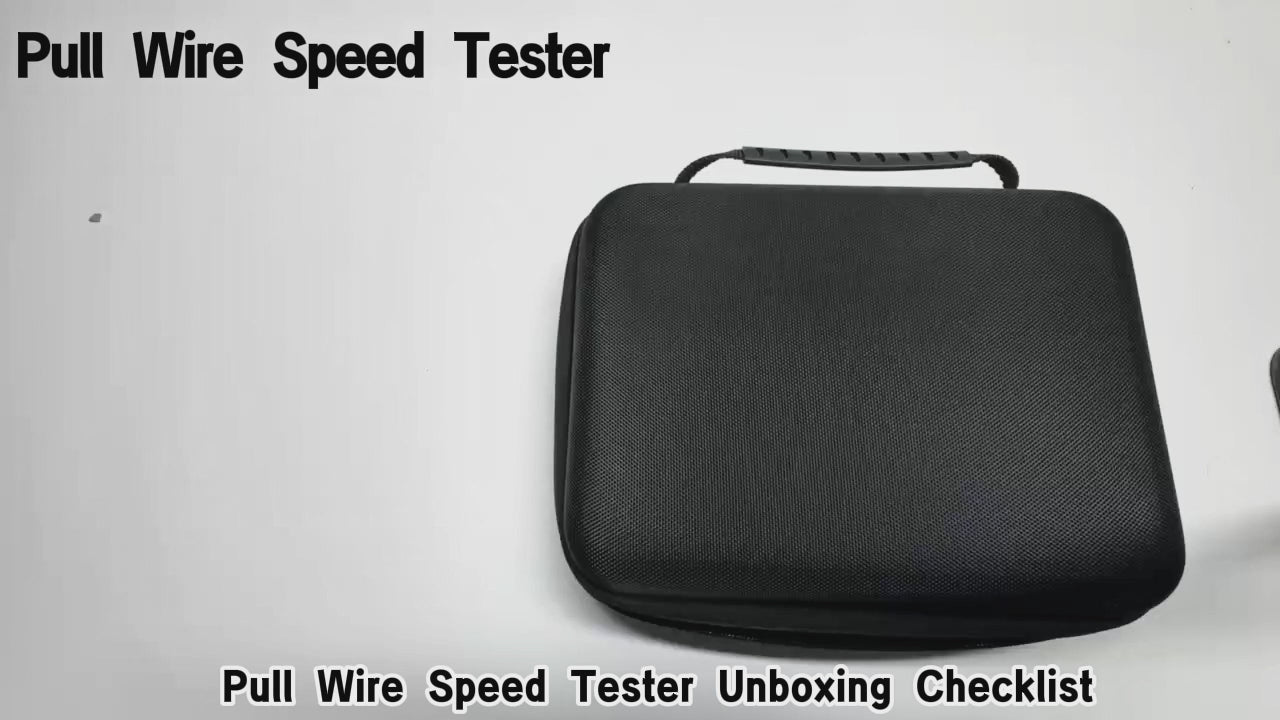

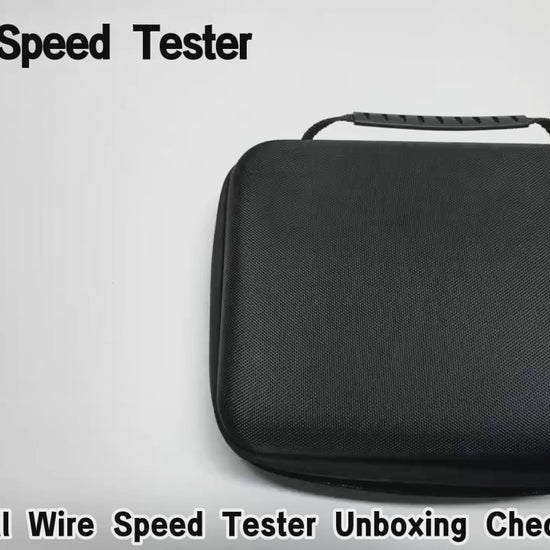

Package Includes
1 × LX01 Speed Tester Host
1 × Standard Pull Wire
1 × Type-C Charging Cable
1 × Electric Screwdriver (Gift)
1 × User Manual
1×Waist Belt
1×Handle
Notes
Keep uniform speed when retracting and releasing the wire; do not pull, bend or squeeze violently.
Place on flat ground, keep away from sharp objects, water and strong electromagnetic interference.
Preheat the device before testing, avoid slopes and obstacles.
Store in dry and cool place, do not disassemble the device privately.
Children must use under adult supervision.
