 FightTech FP01 Smart Split Force Plate System
FightTech FP01 is a portable dual‑plate smart force‑measuring platform built for sports coaches, athletic researchers, physical therapists, strength trainers and sports science labs. Replace subjective visual judgment with objective force‑time curve data to quantify athletic performance, monitor rehabilitation progress and assess return‑to‑sport readiness.

 Core Product Advantages
✅ Laboratory‑Grade Measurement Accuracy
1000 Hz high‑frequency sampling with 0.5 N resolution. Static measurement error＜0.5 %, dynamic peak‑force error＜1.5 %. Captures tiny transient force changes during jumping, landing and maximal isometric contractions.

✅ Split Dual‑Plate Independent Acquisition
Left‑right separated force sensors collect ground reaction force independently. Calculate left‑right force ratio, force difference and asymmetry index. Effectively identify muscular imbalances, evaluate injury risk and track post‑surgical rehabilitation outcomes.

✅ High‑Load Lightweight Portable Build
Max load capacity up to 1200 kg / 12000 N for heavy‑weight training and drop jump testing. Aluminum‑alloy + high‑strength plastic composite shell; each plate weighs only 5 kg. Easy to transport between gyms, tracks, clinics and research sites.

✅ Four Built‑in Professional Test Modes

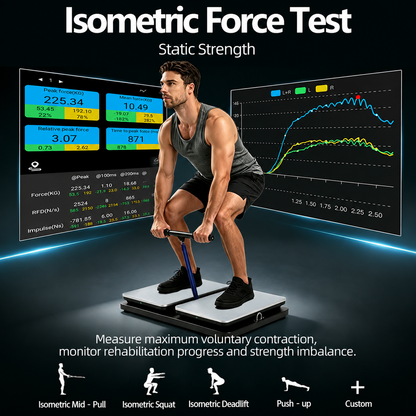

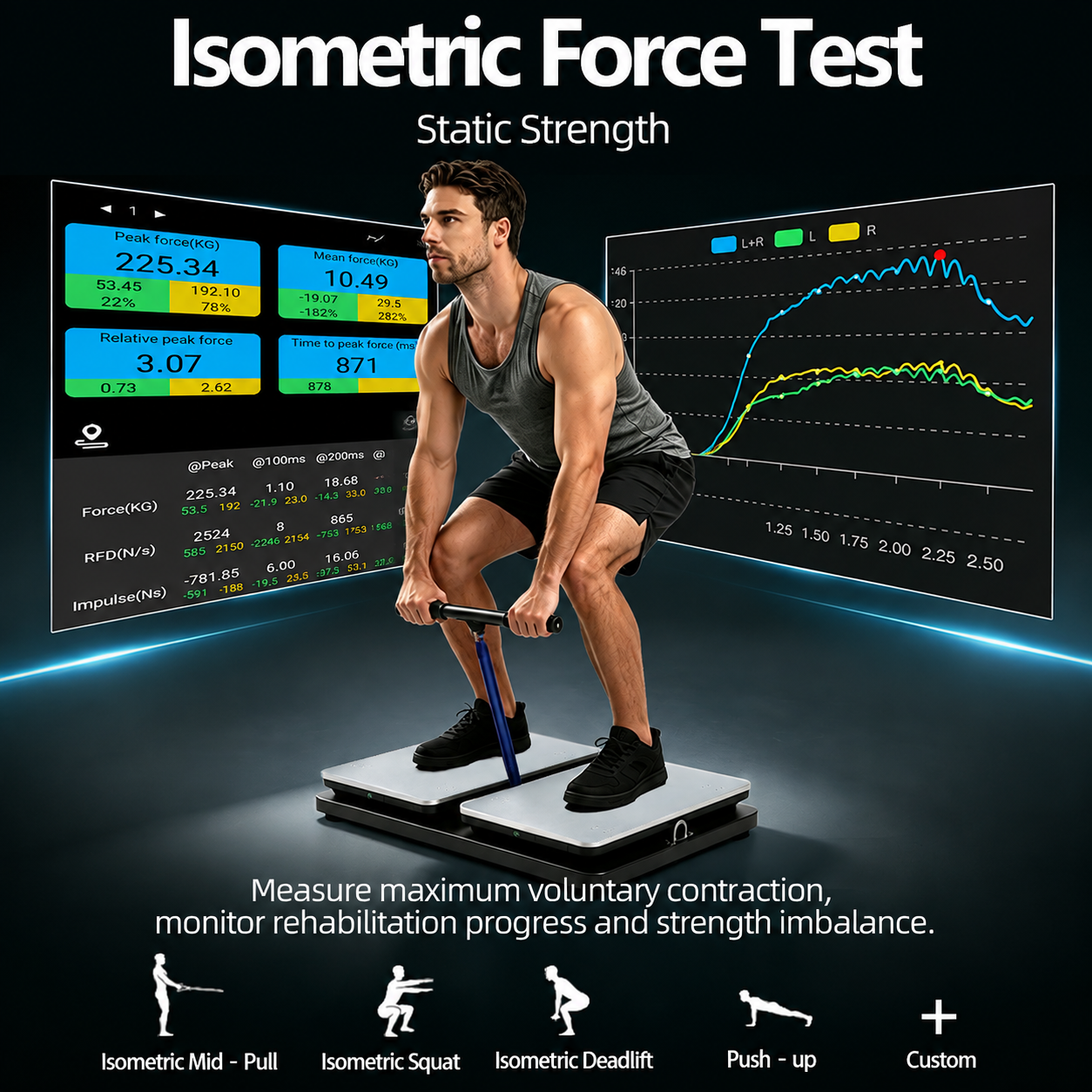

1. Isometric Force Mode
Test isometric mid‑thigh pull, isometric squat, isometric deadlift, push‑ups and custom actions. Output peak force, mean force, relative peak force, time‑to‑peak, RFD (rate of force development), left‑right asymmetry.

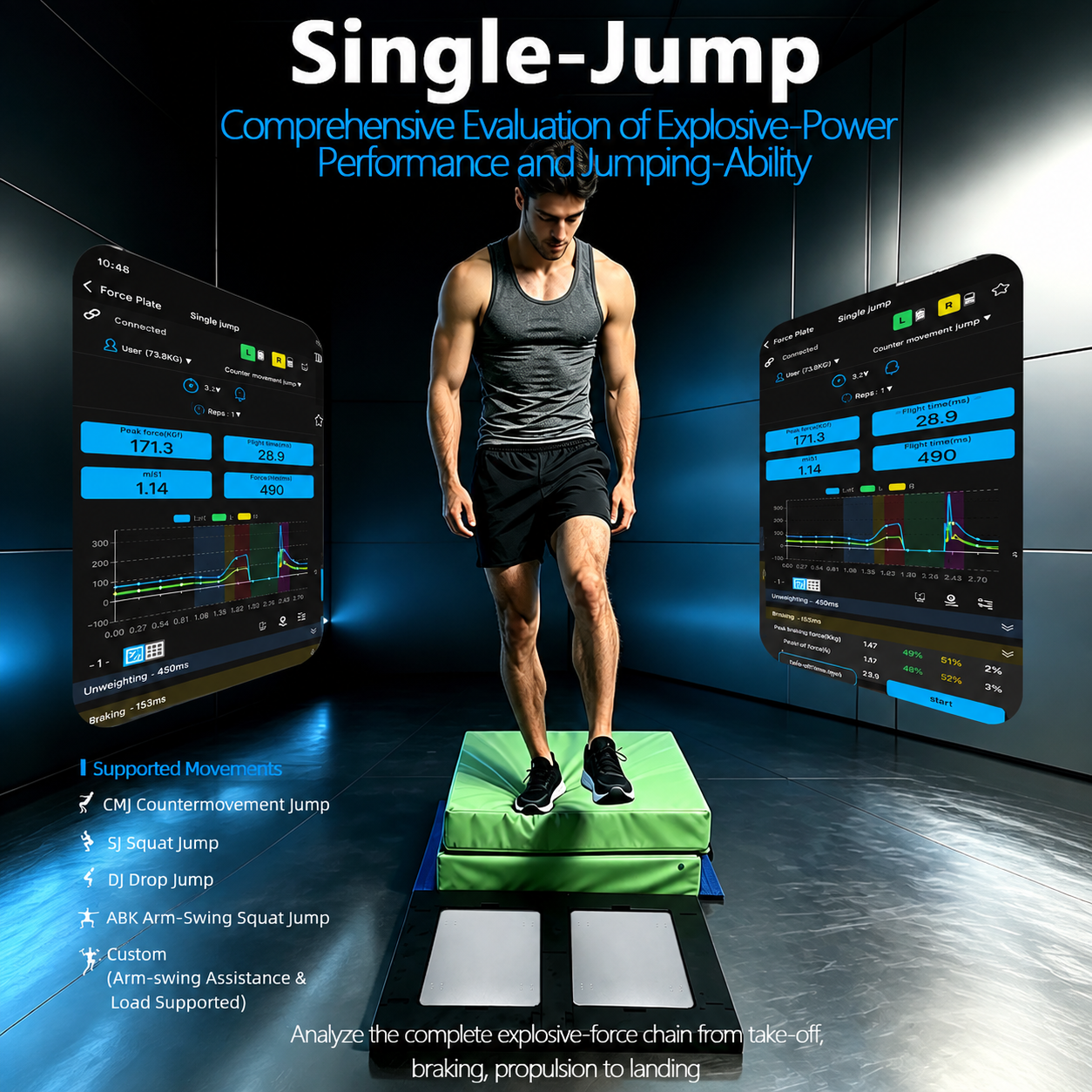

2. Single Jump Mode
Supports CMJ, SJ, DJ, ABK jump. Calculate jump height, air time, RSI modified index, peak propulsive force, braking impulse, landing impact force and bilateral force difference.

3. Continuous Jump Mode
Analyze repeated stretch‑shortening cycle performance. Track average jump height, ground contact time, RSI decay rate, peak‑force attenuation under fatigue conditions for basketball, volleyball and explosive‑sport athletes.

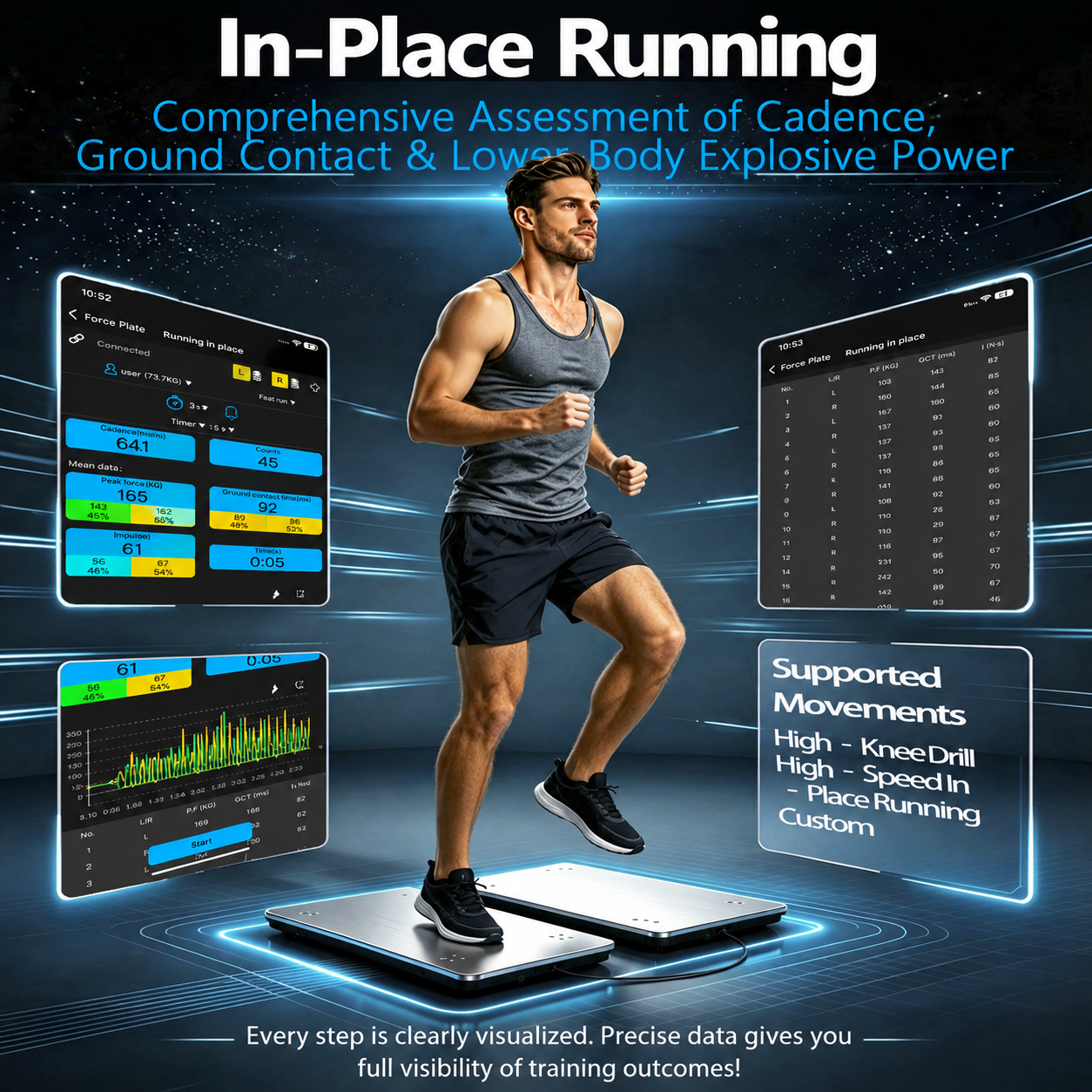

4. In‑Place Run Mode
Analyze gait characteristics during dynamic movement. Record cadence, ground contact time, peak push‑off force, impulse and left‑right asymmetry for sprint‑specific training and running‑posture optimization.

✅ Free Full‑Function Dedicated APP

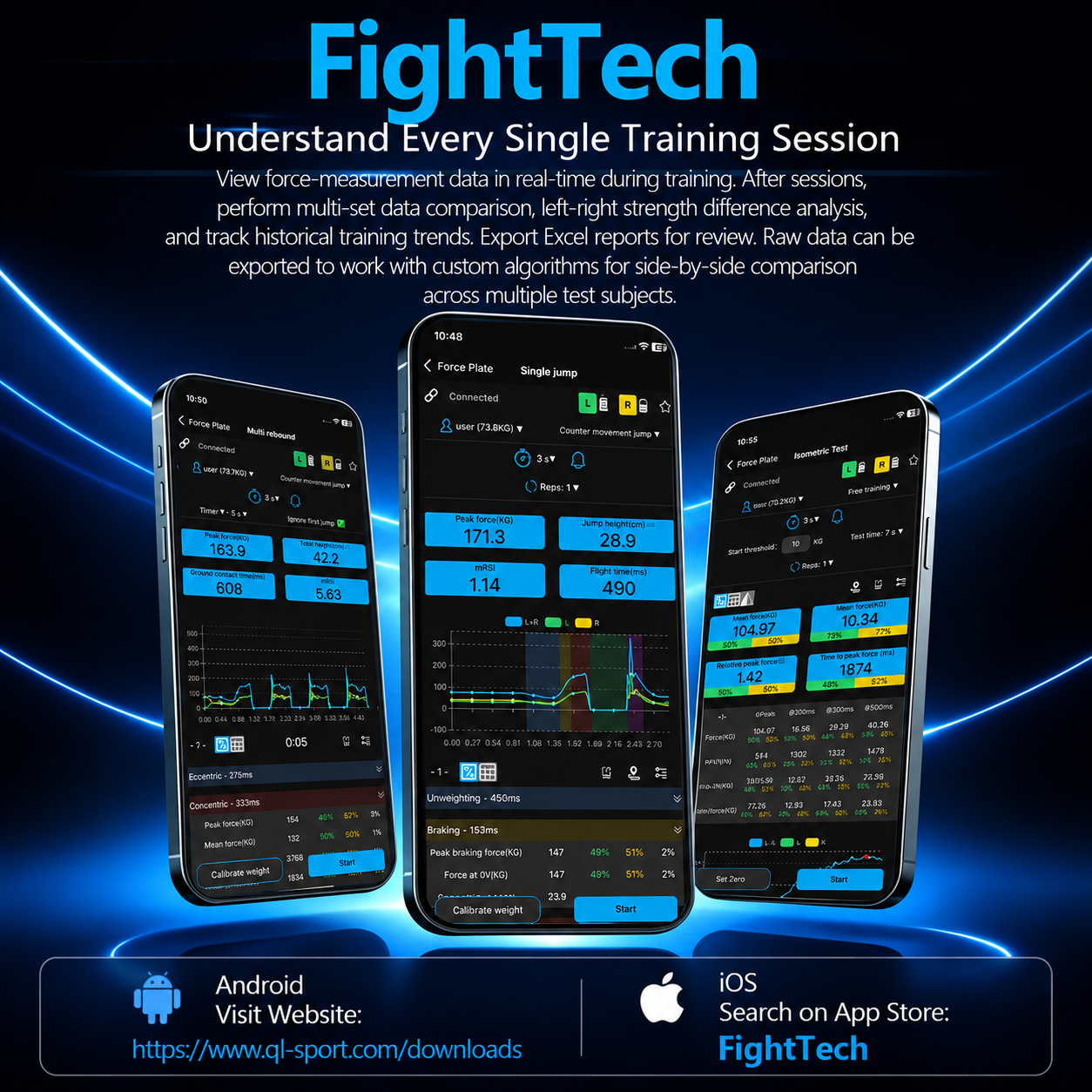

Bluetooth 5.0 stable wireless connection within 10 meters. Auto zero calibration and body‑weight calibration. Unlimited local‑cloud data storage, one‑click export to CSV / Excel. Visual force‑time curve for intuitive data review. Custom thresholds and formulas for personalized test protocols.

✅ Reliable Battery & Hardware
1000 mAh rechargeable lithium‑ion battery, 10‑hours continuous use. Universal Type‑C charging interface, full charge within approx. 3 hours.

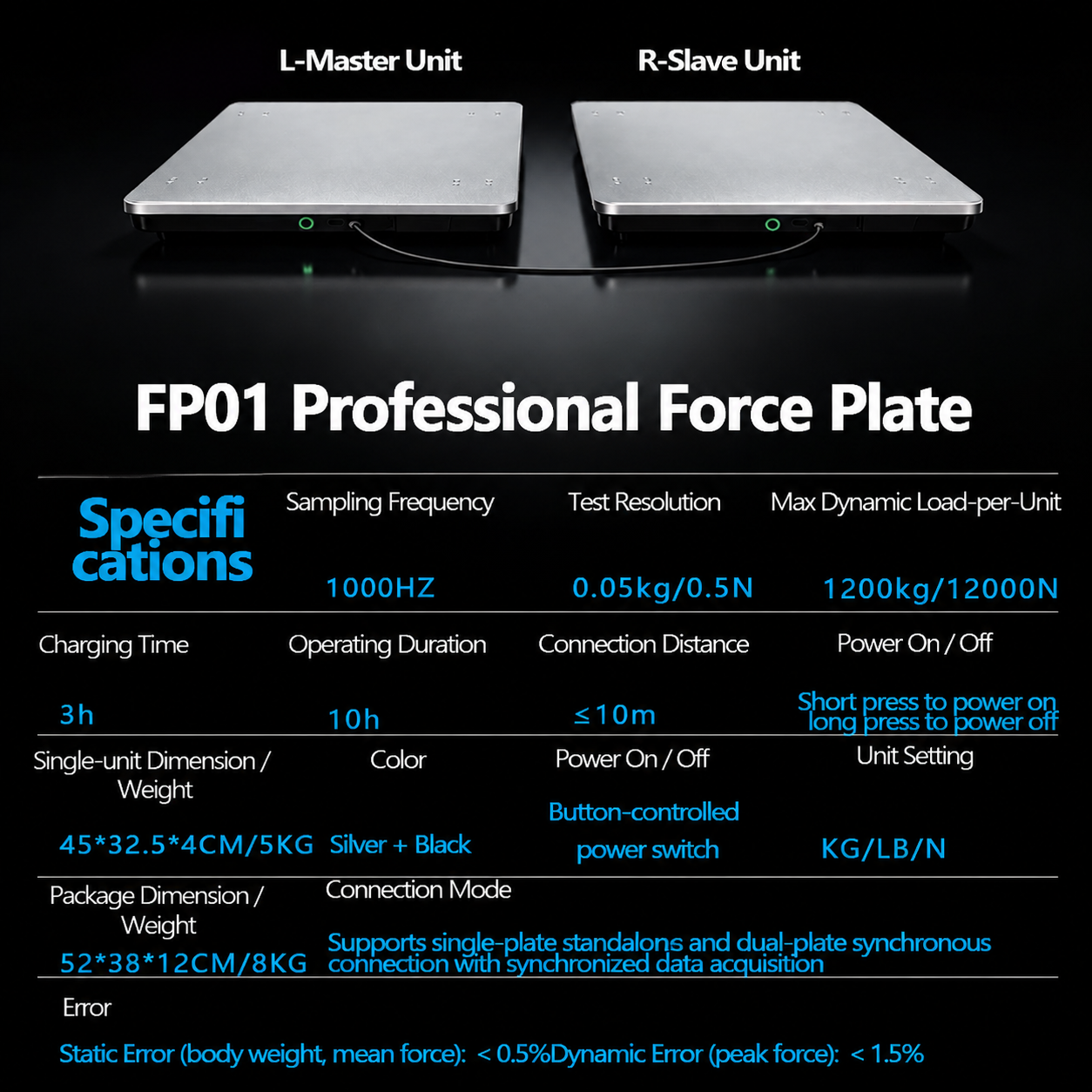

Specifications
Model: FP01
Structure: Split dual‑plate force platform

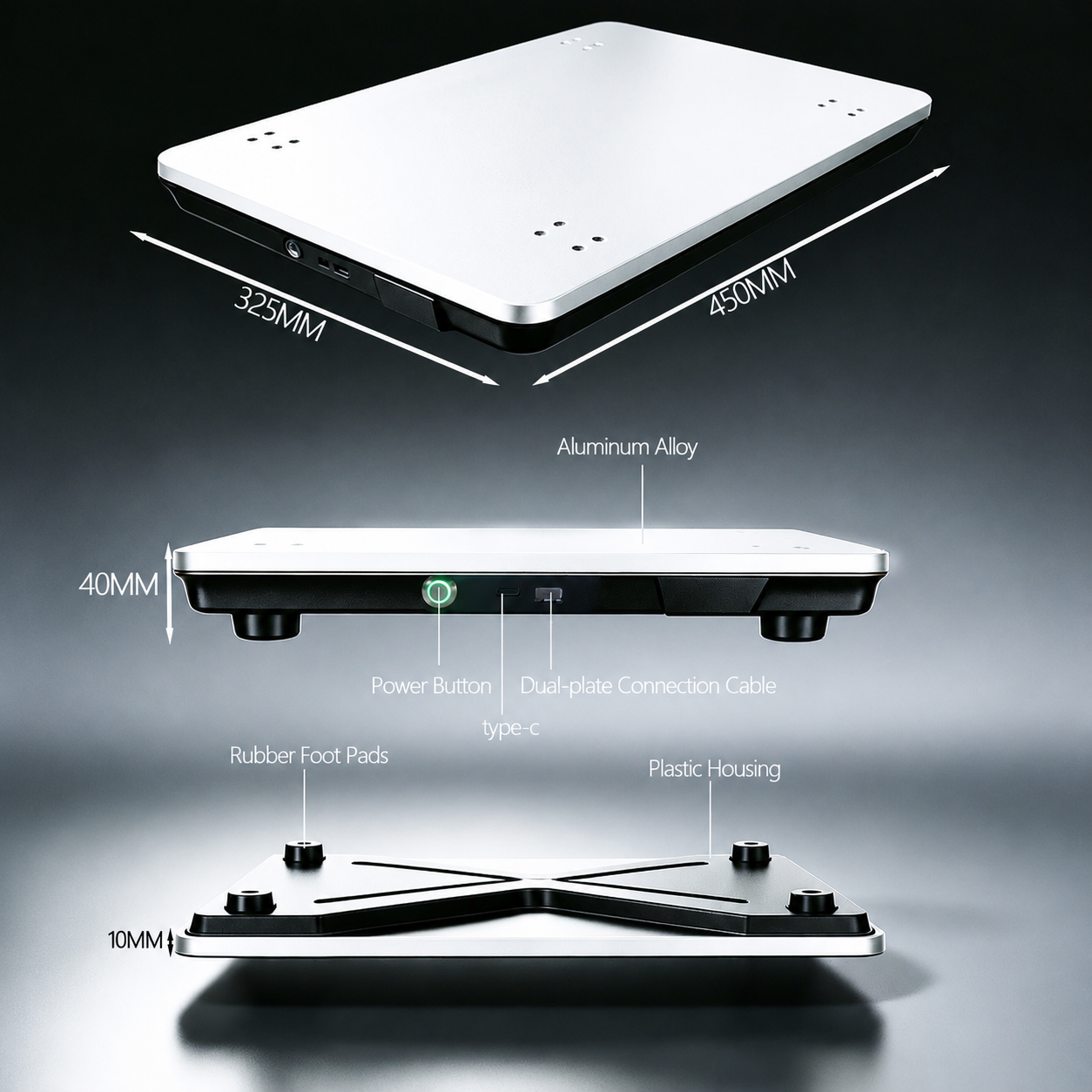

Material: Aluminum alloy + high‑strength engineering plastic
Single‑plate weight: 5 kg
Max load: 1200 kg (12000 N)
Sampling frequency: 1000 Hz
Force resolution: 0.5 N
Static error: ＜0.5 %
Dynamic peak‑force error: ＜1.5 %
Connection: Bluetooth 5.0, max 10 m range
Battery: 1000 mAh
Working time: 10 hours continuous
Charging: Type‑C, charging time ≈3 h
APP: Free dedicated Android APP
Export format: CSV / Excel

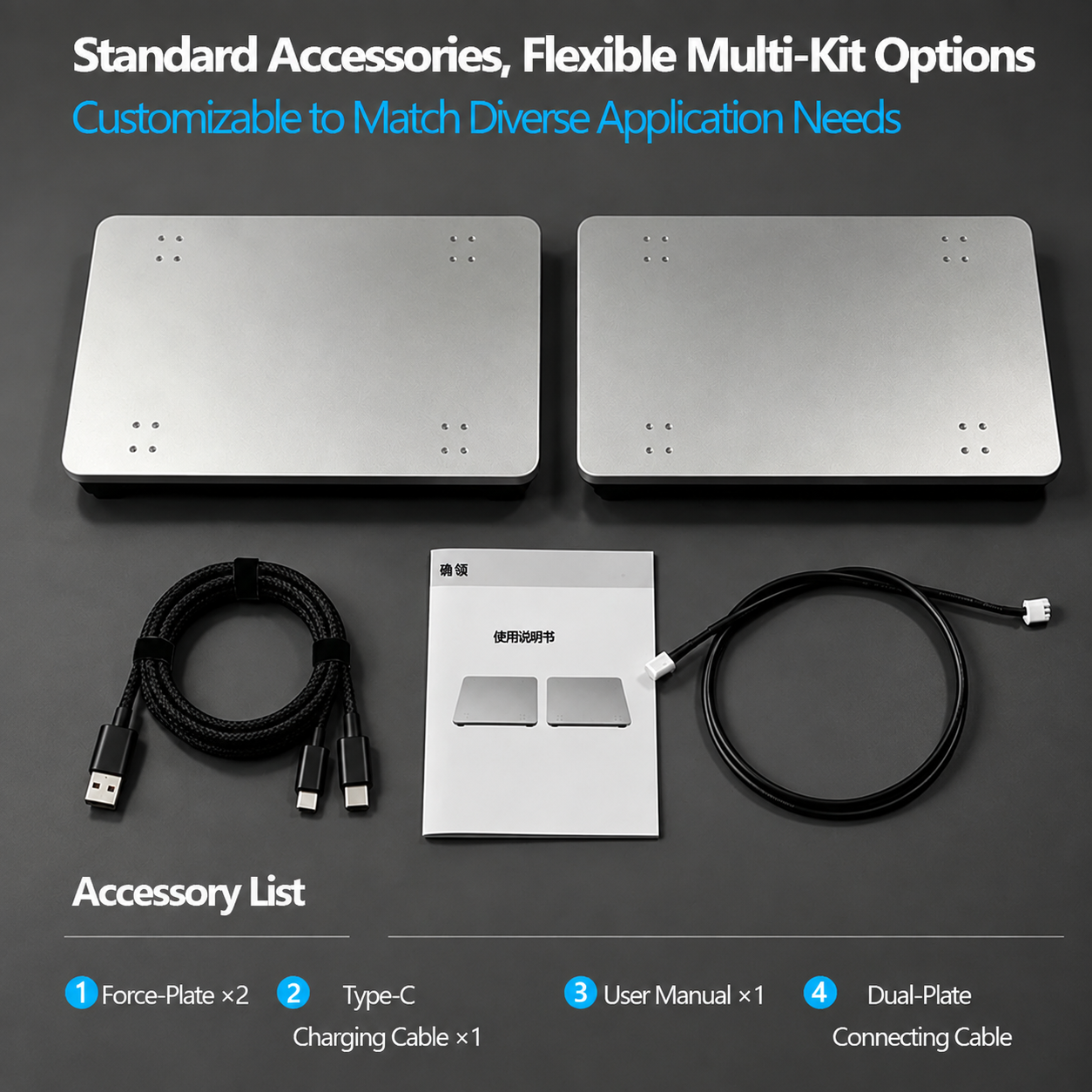

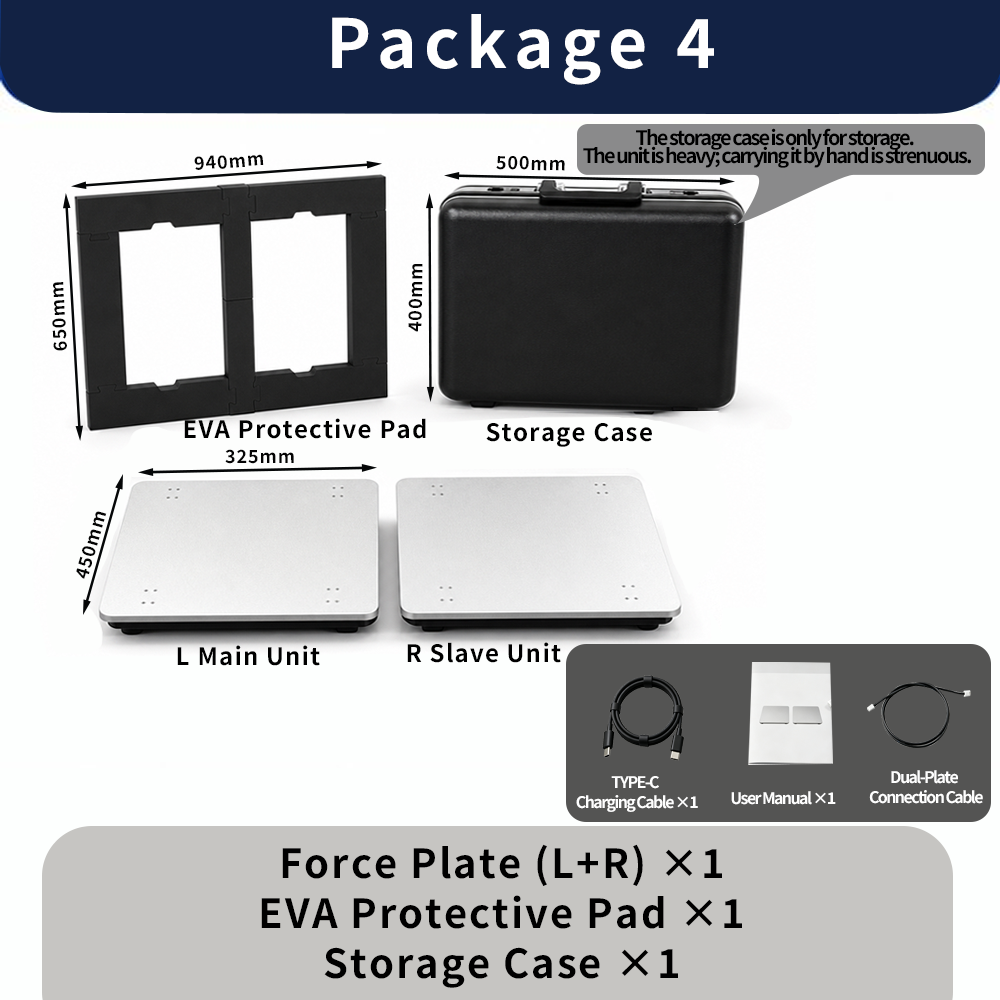

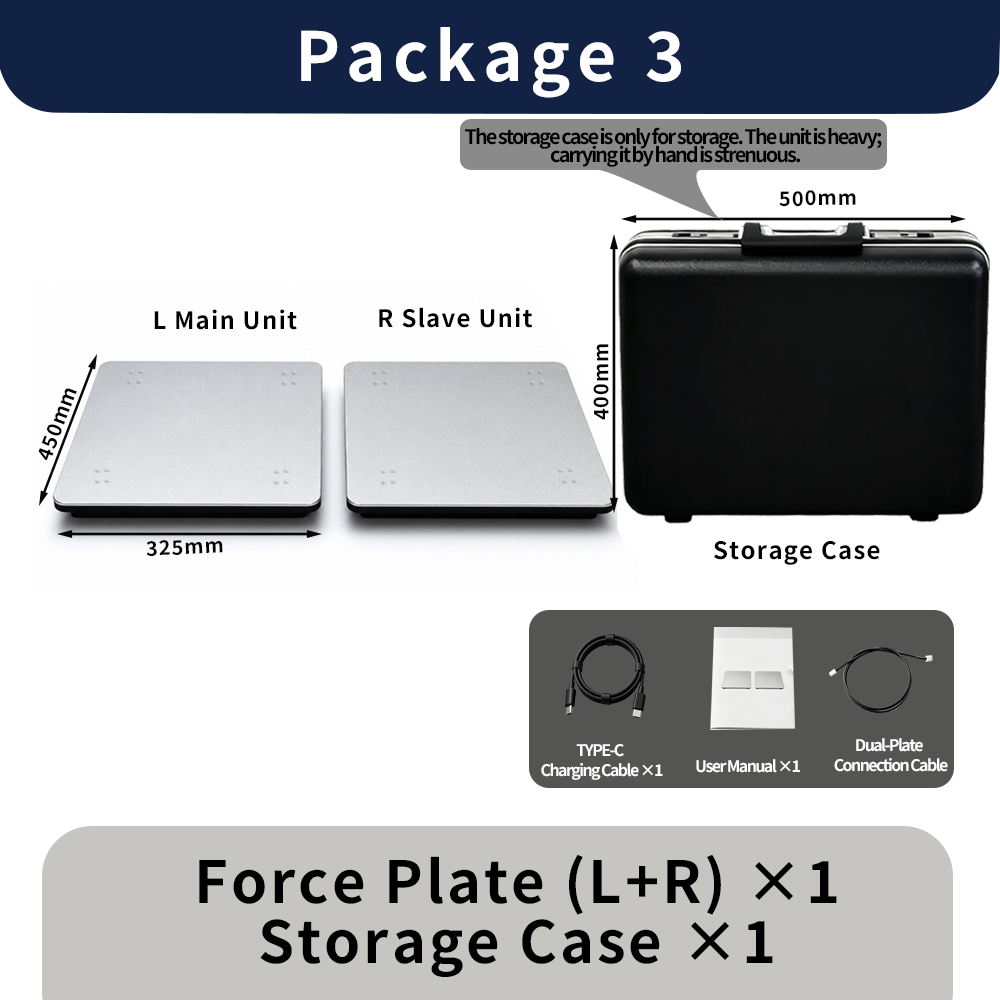

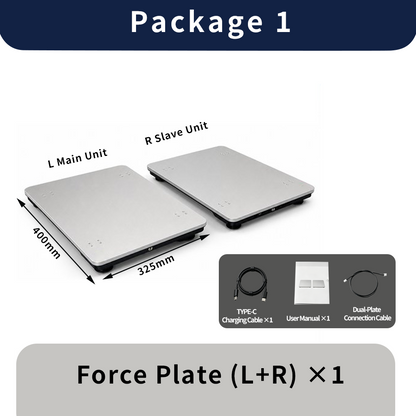

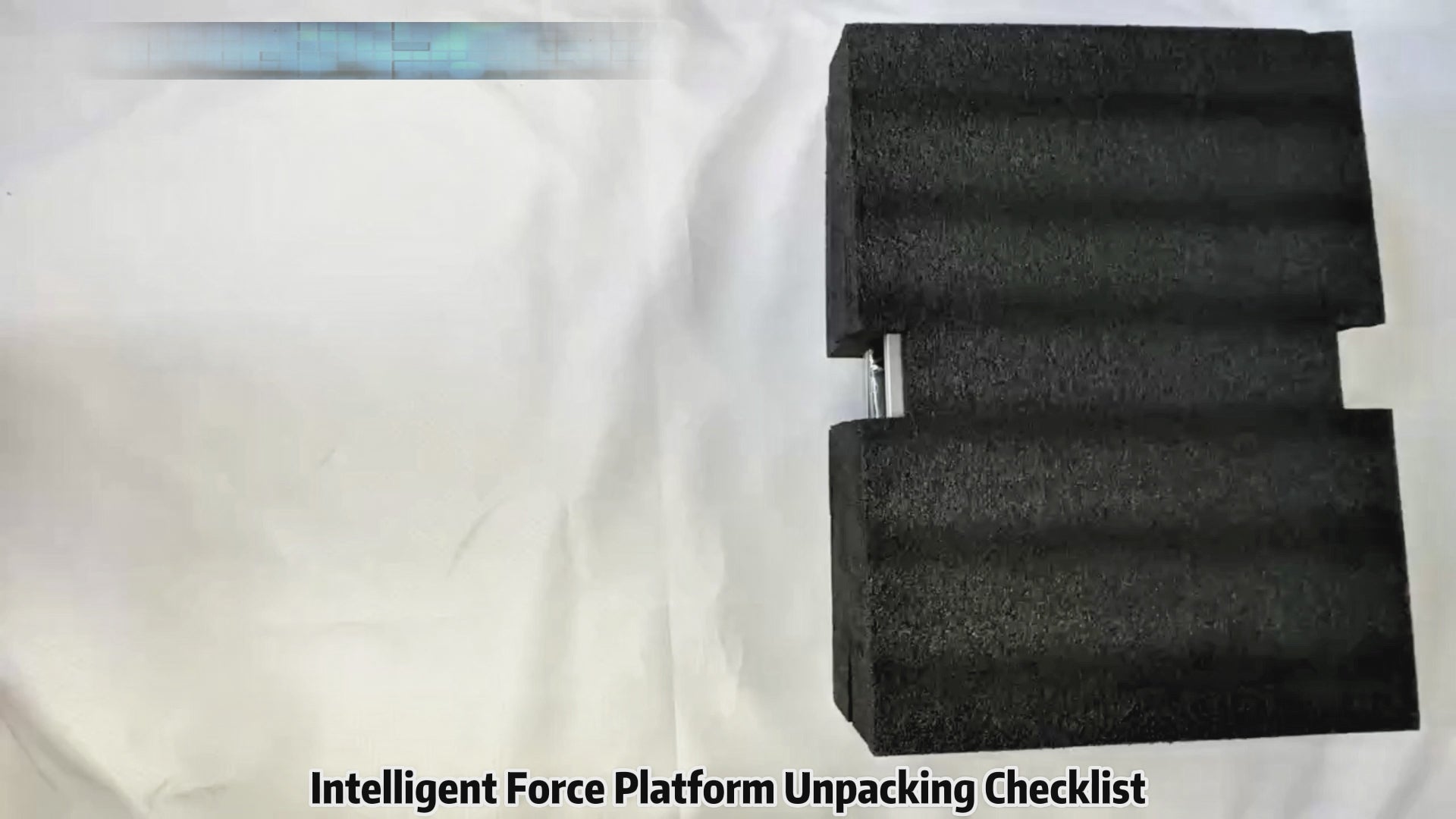

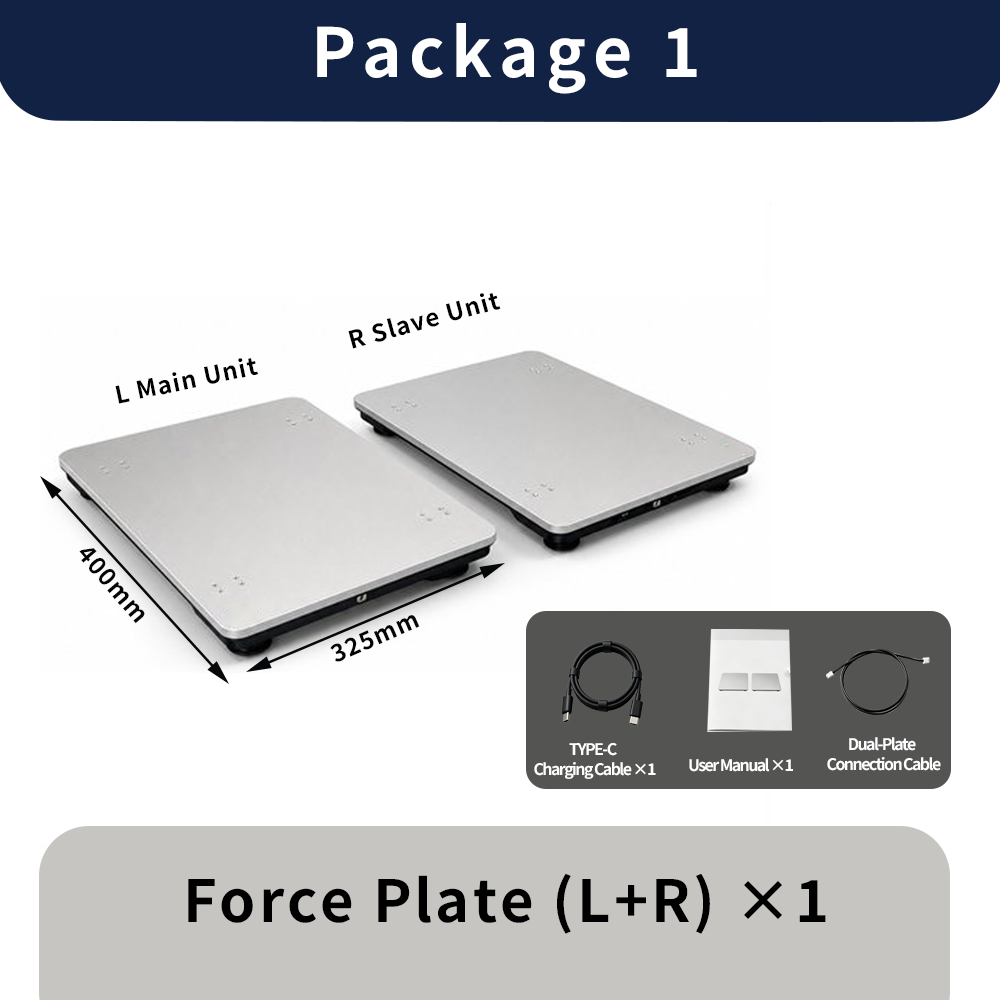

 Package Includes (Standard Kit)
1 × Left Force‑Plate Host
1 × Right Force‑Plate Unit
1 × Inter‑plate Connection Cable
1 × Type‑C Charging Cable
1 × User Manual

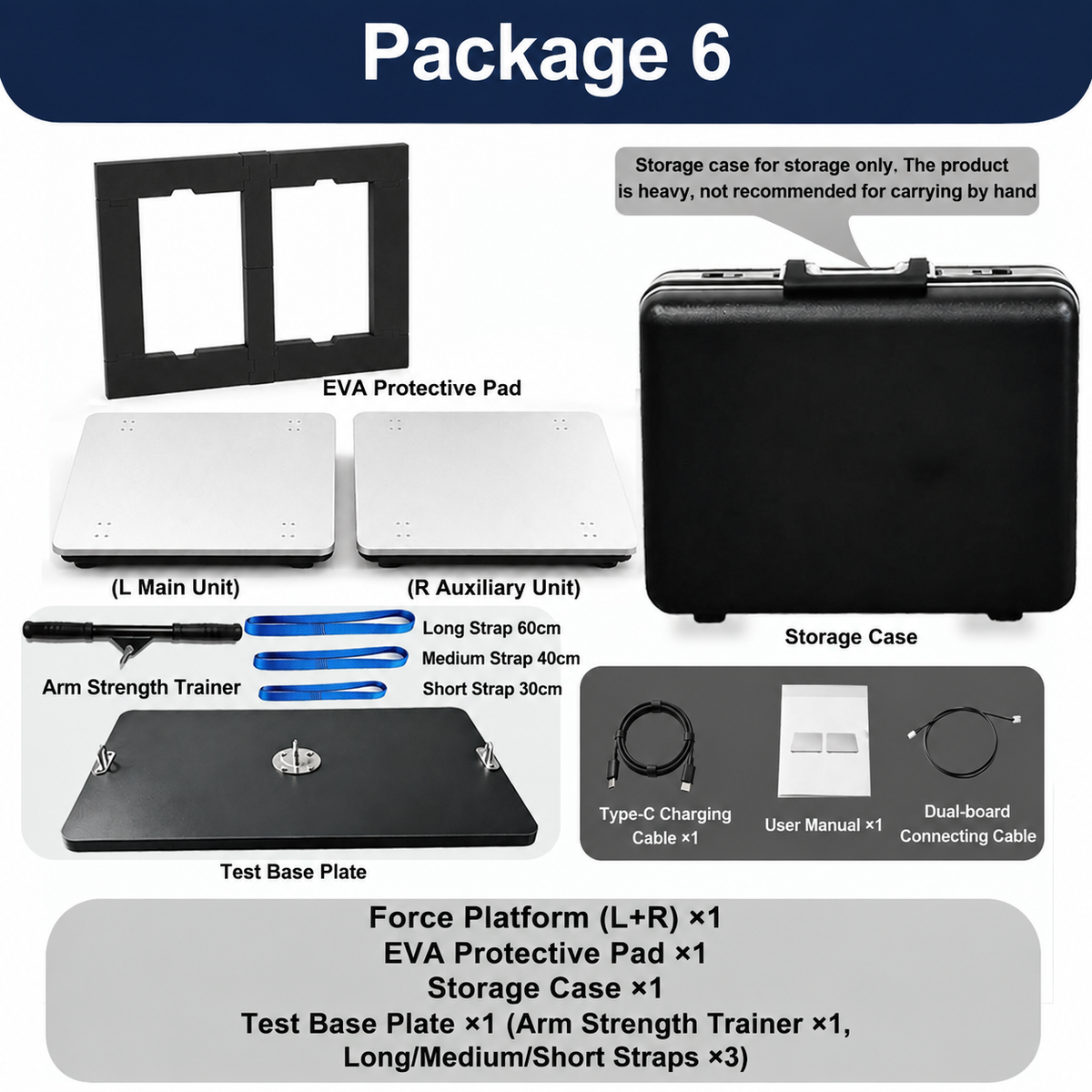

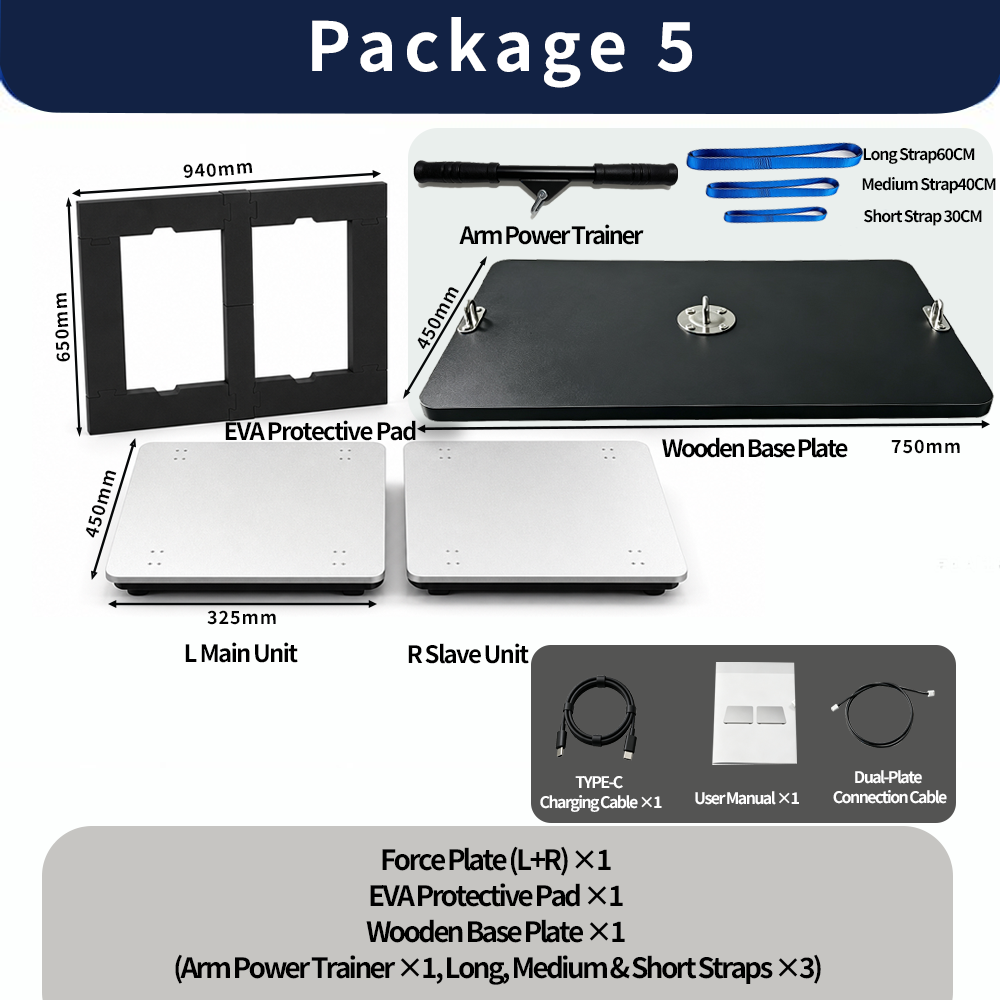

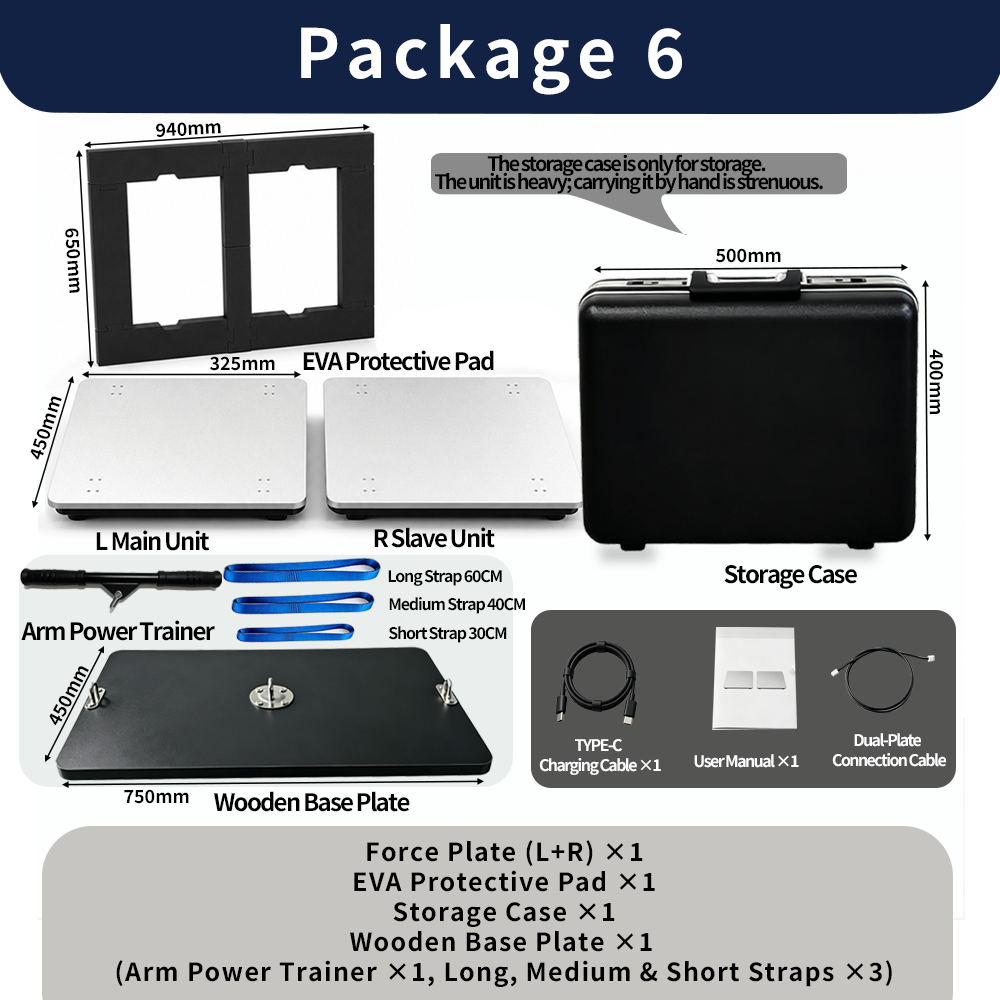

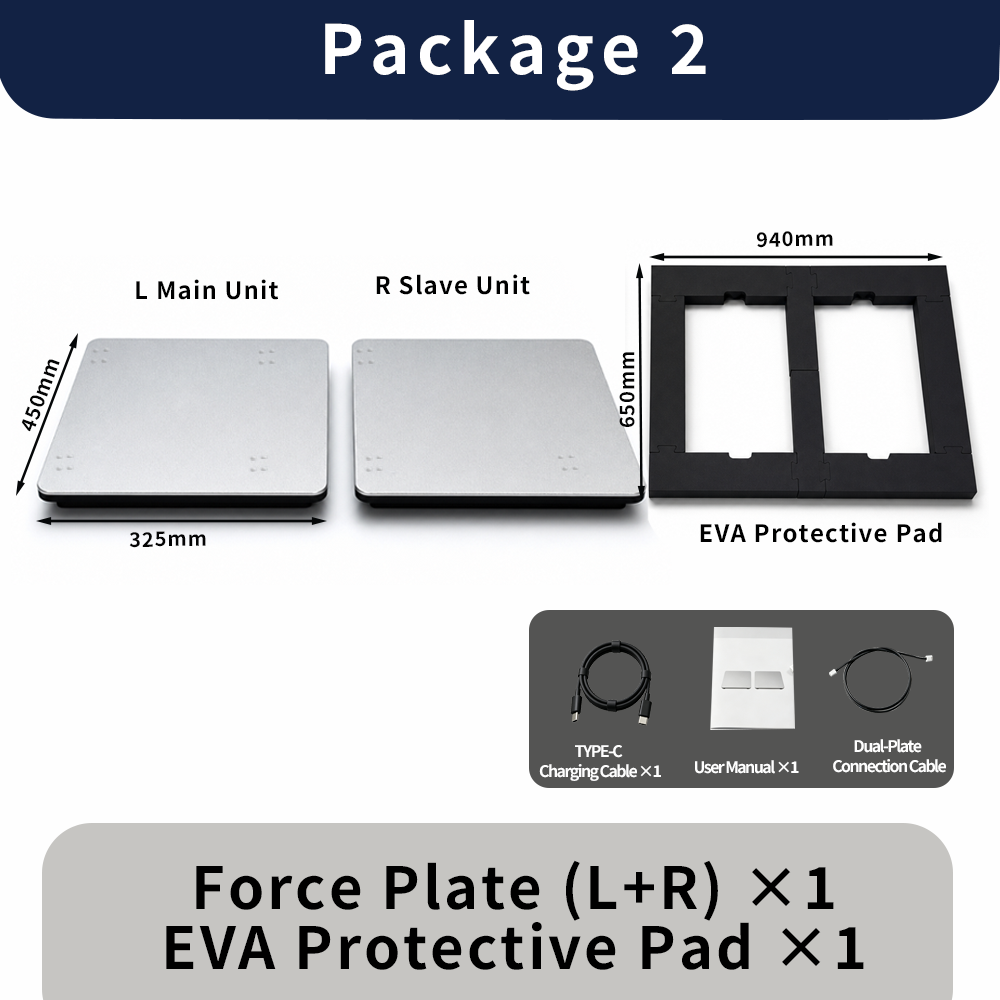

> Note: EVA protective pad, storage suitcase and isometric test base plate are sold separately, not included in standard package.

 Application Scenarios
• Strength & conditioning coaches: Evaluate athlete power, explosive force and training effect
• Physical rehabilitation therapists: Assess lower‑limb recovery, balance and bilateral symmetry for return‑to‑sport judgement
• Sports science researchers & university labs: Biomechanics data collection and teaching demonstration
• Youth sports academies: Monitor adolescent athletic development and prevent sports injuries
• Personal trainers: Deliver objective data‑driven fitness assessment for high‑end clients

Important Notes
1. Place force plates on flat hard ground before power‑on for auto zero calibration. Do NOT place the unit after power‑on.
2. Stand within the valid surface area; avoid stepping over plate edges. No violent smashing or over‑load impact over 1200 kg.
3. Keep device dry; NOT waterproof. Keep away from sharp objects that may scratch the aluminum surface.
4. For maximal‑intensity jump / drop‑jump testing, professional supervision is strongly recommended.
